FSC1 SINGLE BAG FILTER

FSC1 Single Bag Filter Housings are used in low flow applications, where high temperatures and pressures are not required. They have a durable stainless steel construction, and utilize an easy to use v-clamp to close the housing. All FSC1 vessels fit size #2 filter bags.

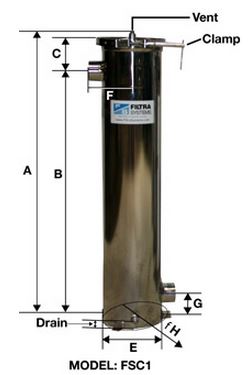

Dimensions
A 38-7/8″
B 33-3/4″
C 3-15/16″
D 1-5/16″
E 8″
F 9-5/16″
G 6-1/8″
H 9-3/8″

Product Information

  • Economically Priced, simple design
  • No Tools required. V-Clamp cover closure makes changing bags fast and easy.
  • No Bypass – bag sealing is guaranteed with our proprietary bag clamping mechanism.
  • Easy to Clean – Vessel housings are electropolished stainless steel.
  • Versatile– Housing will accept either standard or pleated bags.
  • Accepts industry standard #2 size filter bags
  • Large Inventory available.
  • FSC1 series vessels have V-Clamp covers and are rated for 87 psig maximum working pressure.
  • ASME “U” stamp is not available on this design
  • 2″ or 3″ Threaded connections available
  • Material of construction selection is S4 (304 SS) or S6 (316 SS)
  • Vessel gasket selection is N (nitrile) or V (viton)
  • Vessel includes perforated SS bag support basket – Basket available with R (round) bottom for standard bags or F (flat) bottom for pleated bags.
  • Floor mounting tabs allow for the smallest possible footprint.
  • FSC1 style vessels accept industry standard #2 (30″) bags.
  • On chart below: 01-02-02 [First 01 is # of bags (1), second 02 is the inlet flange size (2″) and third 02 is the outlet size (2″)]

Specifications

  • All vessels have 1/2″ npt vent connection
  • Hydraulic Test Pressure:
    ( 180 psig )
  • Design Temperature:
    ( 14 F – 194 F )
  • Filter Volume:
    • #1 (4.75 gal.),
    • #2 (7.40 gal)
  • Nuts & Bolts:
    Zinc coated carbon steel
  • Empty Weight:
    • #2 (55.0 lbs)

Order Information

SeriesModel #Bag Quantity Bag SizeMaterialMax Pressure (psi) Connection Inlet/OutletConnection Type
FSC1FSC1010202S4NR12SS 304 872NPT
FSC1FSC1010202S6NR12SS 316L872NPT
FSC1FSC1010303S4NR 12SS 304 873NPT
FSC1FSC1010303S6NR12SS 316L873NPT
  1. FSC1 series vessels have V-Clamp covers and are rated for 87 psig max. working pressure. – ASME not available on this design.
  2. 01-02-02 (First 01 is the # of bags (1), second 02 is the inlet flange size (2″), and third 02 is the outlet size (2″).
  3. Material of construction selection is S4 (304SS) or S6 (316SS)
  4. Vessel gasket selection is V (Viton) or N (nitrile).
  5. Vessel includes perforated SS bag support basket. – Basket available with F (Flat) bottom for pleated bags or R (Round) bottom for standard bags.
  6. FSC1 style vessels accept industry standard #2 (30″) Bags.
