FSCS SINGLE BAG FILTER

FSCS Single Bag Filter Housings are used in low flow applications, where high temperatures and pressures are not required. They have a durable stainless steel construction, and utilize eye bolts to close the housing for high pressure operation. All FSCS vessels fit size #2 filter bags.

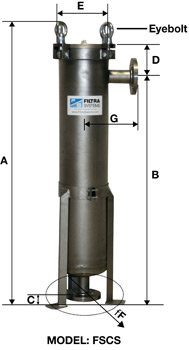

Dimensions
A 43 5/16″ – 56 1/2″
B 34 1/16″ – 47 1/4″
C 0″ -13 3/16″
D 4 1/2″
E 8″
F 9 3/8″
G 8 1/4″

Product Information

  • Value Priced
  • Robust Design with 4 point cover
  • Easy Opening & Closing. Cover has integrated handle in lid and is attached to a swingbolt
  • No Bypass – bag sealing is guaranteed with our
    proprietary bag clamping mechanism
  • Easy to Clean
  • Housing will accept either standard or pleated bags
  • Bottom Outlet & Adjustable Legs simplify installation
  • Large Inventory available
  • ASME option available
  • On the chart below: 01-02-02 (First 01 is the # of bags (1), second 02 is the inlet flange size (2″), and third 02 is the outlet size (2″)

Specifications

  • All vessels have 1/2″ npt vent connection
  • Hydraulic Test Pressure:
    ( 200 psig )
  • Design Temperature:
    ( 14 F – 194 F )
  • Filter Volume:
    • #2 (7.4 gal.),
  • Nuts & Bolts:
    Zinc coated carbon steel
  • Empty Weight:
    • #1 (72 lbs)

Order Information

SeriesModel #Bag Quantity Bag SizeMaterialMax Pressure (psi) Connection Inlet/OutletConnection Type
FSCSFSCS010202S4NR212SS3041502ANSI Flanged
FSCSFSCS010303S4NR212SS3041503ANSI Flanged
FSCSFSCS010202S6NR212SS316L1502ANSI Flanged
FSCSFSCS010303S6NR212SS316L1503ANSI Flanged
FSCSFSCS010202CSVR212CS1502ANSI Flanged
  1. FSCS series filter vessels are rated for 150 psig and available with ASME stamp
  2. 01-02-02 (First 01 is the # of bags (1), second 02 is the inlet flange size (2″), and third 02 is the outlet size (2″).
  3. Material of construction selection is S4 (304SS) or S6 (316SS) or CS (carbon steel)
    • All carbon steel vessesl are painted with two components epoxy primer & top coat.
  4. Vessel gasket selection is V (viton) or N (nitrile).
  5. Vessel includes perforated SS bag support basket.
    • Basket available with F (Flat) bottom for pleated bags or R (Round) bottom for standard bags.
  6. FSCS style vessels accept industry standard #2 (30″) Bags.
  7. Add “- ASME” to end of model #, to order ASME option.
