FSSB MULTIPLE BAG FILTER

Filtra-Systems FSSB multi-bag, swing bolt vessels are in stock in a variety of sizes, 304 stainless and Carbon Steel material, in two orientations “D” or “E” (left or right)

Our standard design with inlet and outlet out the side of the housing, keeps the operation height much lower, saving you costs of building platforms or catwalks to service or change out bag filter media.

These FSSB multi-bag filter housings are used in high flow applications and can operate under high temperature and pressure.

Many clients use these multi-bag filter housings in water and oil applications.

FSSB bag filter housings with up to 12 bags per vessel promise to get you higher flow rates and less downtime for bag changes.

These FSSB series filter vessels are rated 150 PSIG working pressure and use industry-standard #2 filter bags which we always have in-stock, ready to ship to you.

Call now, 248-919-6119, we’ll help you get the perfect bag filter housing and media for your application and facility.





FSSB-3-Bag Filter Housing With Options D and E

Model #FSSB030303S4NR, size #2, (3) Three bag housing, 304 SS material, Swing bolt & spring balance style clamp lid, rated for 150 PSIG, 3″ ANSI 150# flanges inlet and outlet standard, Nitrile seals, 304 stainless steel Round bottom basket for bags. Piping arrangement “D” or “E”. (left or right)



Four bag 304 stainless steel filter housing with

FSSB-4-Bag Filter Housing With D and E options

Model #FSSB040404S4NR, size #2 (4) Four bag housing, 304 SS material, Swing bolt & spring balance style clamp lid, rated for 150 PSIG, 4″ ANSI 150# flanges inlet and outlet standard, Nitrile seals, 304 stainless steel Round bottom basket for bags. Piping arrangement “D” or “E”. (left or right)

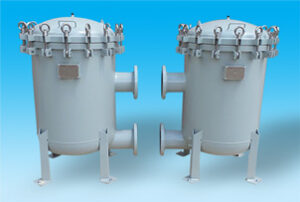

FSSB-6-Bag Filter Housing With D & E Options

Model #FSSB060606S4NR, size #2 (6) Six bag housing, 304 SS material, Swing bolt & spring balance style clamp lid, rated for 150 PSIG, 6″ ANSI 150# flanges inlet and outlet standard, Nitrile seals, 304 stainless steel Round bottom basket SS (for bags). Piping arrangement “D” or “E”.(left or right)

FSSB-6-Bag Filter Housing With “bottom in / bottom out” piping orientation.

FSSB-6-Bag Filter Housing With “bottom in / bottom out” piping orientation.

















Top View of FSSB-6-Bag Filter Housing.

Top View of FSSB-6-Bag Filter Housing.













FSSB-8-Bag Filter Housing With D and E options

FSSB-8-Bag Filter Housing With D and E options

Model #FSSB080808S4NR, size #2 (8) Eight bag housing, 304 SS material, Swing bolt & spring balance style clamp lid, rated for 150 PSIG, 8″ ANSI 150# flanges inlet and outlet standard, Nitrile seals, 304 stainless steel Round bottom basket SS (for bags). Piping arrangement “D” or “E”. (left or right)

Top View of FSSB-8-Bag Filter Housing.

Top View of FSSB-8-Bag Filter Housing.


FSSB-8-Bag Filter Housing With “bottom in / bottom out” piping orientation.

FSSB-8-Bag Filter Housing With “bottom in / bottom out” piping orientation.

















FSSB-8-Bag Filter Housing With orientation “A” option.

FSSB-8-Bag Filter Housing With orientation “A” option.

















Twelve bag carbon steel filter housing

FSSB-12-Bag Filter Housing With D and E options

Model #FSSB120808CSVR, size #2 (12) Twelve bag housing, Carbon Steel material, Swing bolt & spring balance style clamp lid, rated for 150 PSIG, 8″ ANSI 150# flanges inlet and outlet standard, Viton seals, 304 stainless steel Round bottom basket SS (for bags). Piping arrangement “D” or “E”. (left or right)



FSSB-17-Bag Filter Housing With D and E options

FSSB-17-Bag Filter Housing With D and E options

Model #FSSB1710100SVR, size #2 (17) Seventeen bag housing, Carbon Steel material, Swing bolt & spring balance style clamp lid, rated for 150 psig, 10″ ANSI 150# flanges inlet and outlet standard, Viton seals, Round bottom basket SS (for bags). Optional piping arrangement “A”, “D”, or “E”.

Top View of FSSB-17-Bag Filter Housing.

Top View of FSSB-17-Bag Filter Housing.

Custom Bag Filter Housing/Vessel can be built for you upon request!
Call now 248-919-6119 for expert help getting the perfect bag filter system for your applications.

Option A

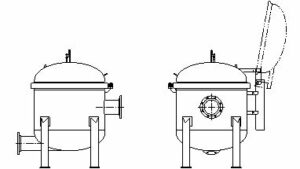

FSSB Multi Bag Filter Housings-Option S
Option D
option2
Option E
option3

Product Information

  • Fast Turnaround. Spring Balanced Lid and swing bolts make bag changes faster than davit swing lid design
  • No Bypass – bag sealing is guaranteed with our compression style bag clamps
  • Large Capacity Available – up to 12 bags per vessel means higher flow rates and less downtime for bag changes
  • Ergonomic Design. Low profile allows easier access and our Spring Balanced Lid can be opened with one hand
  • Flexibility – accepts both #2 bags or pleated cartridges, alternate inlet & outlet sizes & orientation, can be specified
  • Inventory Available or Made-to-Order
  • ASME option
  • On the chart below, Model # 03-03-03 means:
    (First 03 is the # of bags (3),
    second 03 is the std. Inlet Flange Size (3″), and
    third 03 is the std. Outlet size (3″)

Specifications

  • All vessels lids have two, 1/2″ npt vent connections.
  • All vessels have an 1 1/4″ drain plug located on the bottom of both the inlet and outlet pipe.
  • Hydraulic Test Pressure ( 200 psig )
  • Design Temperature ( 176 F )
  • Standard Inlet and Outlet sizes are listed. Other sizes and orientation maybe ordered.
  • All vessels sandblasted inside and out (SSPC-SP5)

Order Information

SeriesModel #Bag Quantity Bag SizeMaterialMax Pressure (psi) Connection Inlet/OutletConnection Type
FSSBFSSB030303S4NR32SS 304 1503″ANSI Flanged
FSSBFSSB040404S4NR42SS 304 1504″ANSI Flanged
FSSBFSSB060606S4NR62SS 304 1506″ANSI Flanged
FSSBFSSB80808S4NR82SS 304 1508″ANSI Flanged
FSSBFSSB120808S4NR122SS 3041508″ANSI Flanged
FSSBFSSB030303CSVR32CS1503″ANSI Flanged
FSSBFSSB040404CSVR42CS1504″ANSI Flanged
FSSBFSSB060606CSVR62CS1506″ANSI Flanged
FSSBFSSB080808CSVR82CS1508″ANSI Flanged
FSSBFSSB120808CSVR122CS1508″ANSI Flanged
FSSBFSSB030303S6NR32SS 316L1503″ANSI Flanged
FSSBFSSB040404S6NR42SS 316L1504″ANSI Flanged
FSSBFSSB060606S6NR62SS 316L1506″ANSI Flanged
FSSBFSSB080808S6NR82SS 316L1508″ANSI Flanged
FSSBFSSB120808S6NR122SS 316L1508″ANSI Flanged
  1. FSSB series filter vessels are rated for 150 psig working pressure and are available with ASME stamp.
  2. 03-03-03 (First 03 is the # of bags (3), second 03 is the std. Inlet Flange Size (3″), and third 03 is the std. Outlet size (3″).
  3. Material of construction selection is S4 (304SS) or S6 (316SS) or CS (carbon steel)
    • All carbon steel vessels are painted with two components epoxy primer & topcoat.
  4. Vessel gasket selection is V (viton) or N (nitrile).
  5. Vessel includes a perforated SS bag support basket.
    • Basket available with F (Flat) bottom for pleated bags or R (Round) bottom for standard bags.
  6. FSSB multi-bag vessels are designed for use with #2 filter bags or pleated cartridges.
  7. Add “- ASME” to end of model #, to order ASME option.
  8. Add “- A”, “-B”, or “-C” for the inlet & outlet orientation specified. Outlet is always tangential with the bottom.
